Refrigeration Equipment

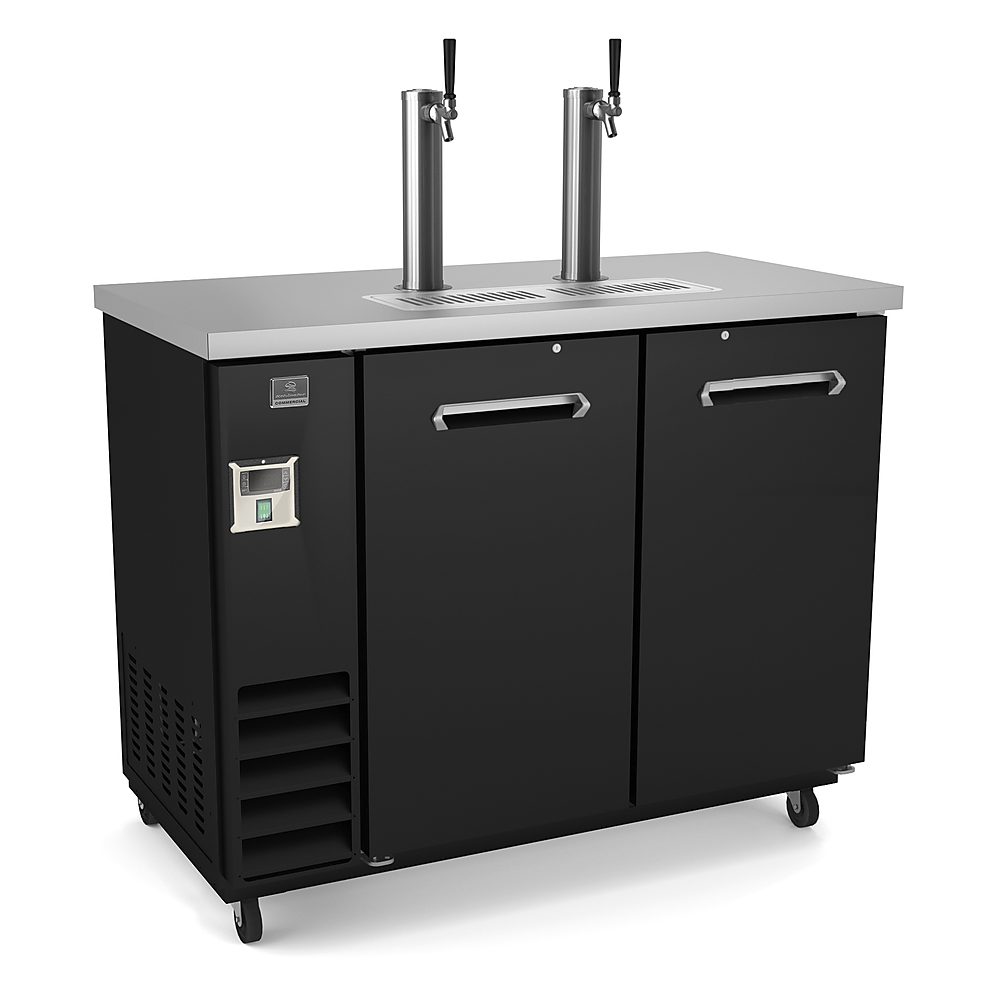

2-Door 2-Tower Draft Box Black 49" Long 738297
2-Door 2-Tower Draft Box Black 49" Long
- Features
- Specifications
- Documents
-
Locking doors protect the contents of the unit
-
Cabinet completely insulated with high density polyurethane for low environmental impact.
-
External digital temperature display.
-
Fin & Tube Condenser improves performance in high temperature environments.
-
Shallow depth body, for narrow footprint
-
Automatic Defrost Cooling System provides worry-free performance.
-
Remote CO2 connection setup for streamlined gas management
-
Refrigerated towers
-
Removable rubber bumper guards for airflow spacing and shock absorption
-
Cabinet capable of accepting (2) half-barrel, (3) slim quarter-barrel, (4) quarter-barrel, and (6) sixth-barrel kegs
-
Self-closing door with 90-degree stay-open feature.
-
Lockable door.
-
Internal drain for easy clean out.
-
Painted black steel exterior, for durable and sleek modern finish
-
Stainless steel interior, durable and easy to clean for daily commercial use
-
Heavy duty casters.
-
Magnetic gasket removable without tools for easy cleaning.
-
Pre-wired heavy duty power cord.
-
Heavy gauge reinforced steel exterior bottom panel
-
Stainless steel worktop, durable functionality
-
Heavy duty door hinges.
Refrigeration Data
- Current absorbed: 3 Amps
- Condenser type: Fin & tube
- Operating temperature min.: 32 °F
- Compressor power: 1/5 hp
- Operating temperature max.: 41 °F
- Defrost type: Auto Defrost
Capacity:
- Gross capacity: 12.5 cu.feet
Sustainability
- Refrigerant type: R290
- GWP Index: 3
- Refrigerant weight: 110 g
Key Information:
- Number and type of grids (included): 4 - Vinyl-Coated Steel
- Warranty: 3 / 5 years
- Door hinges: 1 Left+1 Right
- External dimensions, Width: 49 1/16" (1247 mm)
- External dimensions, Depth: 24 7/16" (620 mm)
- External dimensions, Height: 56 15/16" (1446.5 mm)
- Number and type of doors: 2 Full
- Internal Dimensions (depth): 20 " / (508 mm)
- Internal Dimensions (height): 28 " / (711.2 mm)
- Internal Dimensions (width): 36 " / (914.4 mm)
- Shipping height: 58 11/16" (1490 mm)
- Shipping weight: 269 lbs (122 kg)
- Shipping volume: 56.92 ft³ (1.61 m³)
- Type of external material: Black Prepainted Steel
- Type of internal material: Stainless Steel
- Approvals ETL C&US;ETL SANITATION
Electric
- Supply voltage: 115 V/1 ph/60 Hz
- Electrical power, max: 0.31 kW
- Plug type: USA NEMA 5-15P
