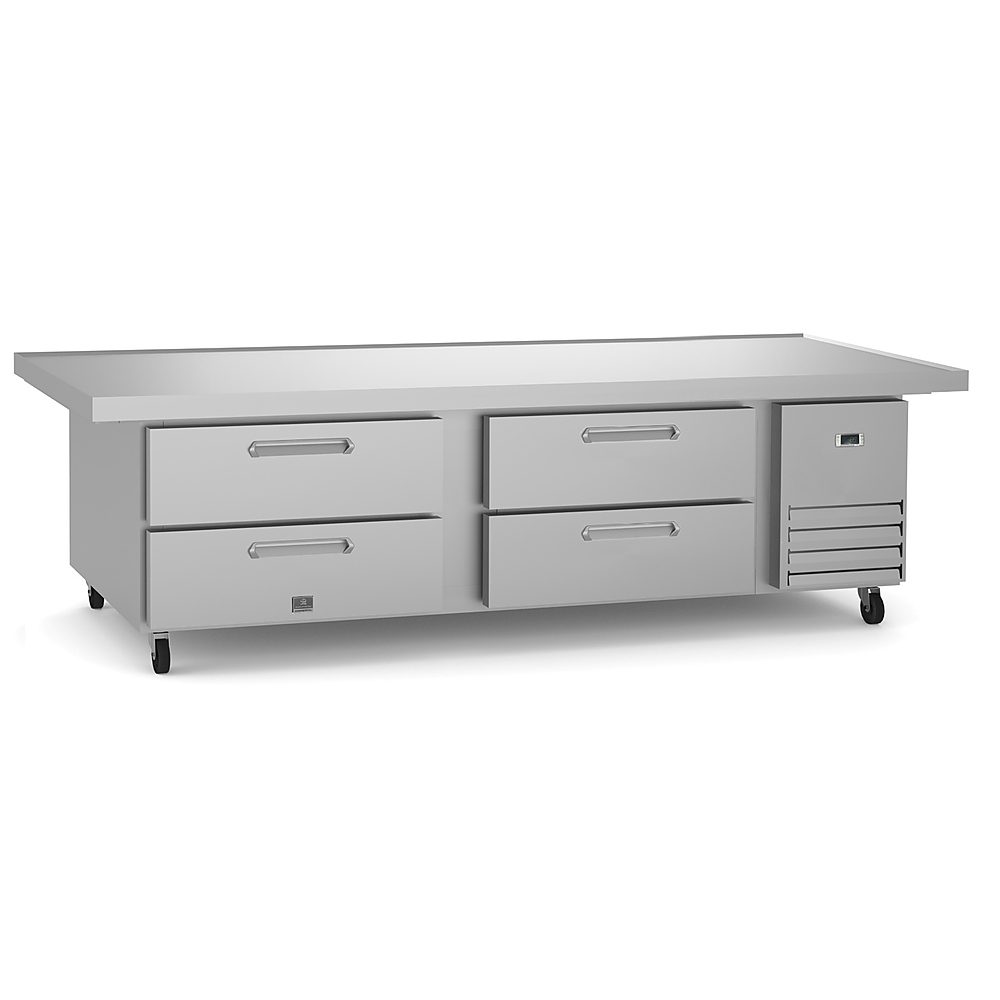

4-Drawer Chef Base Refrigerator 76" Long
- Features
- Specifications
- Documents
-
External temperature display.
-
Heavy‑duty construction with 1,009 lbs. load capacity on top.
-
Cabinet completely insulated with high density polyurethane for low environmental impact.
-
Reccomended maximum temperature on worktop surface is 572°F.
-
Insulation of the top guaranteed thanks to the Integrated ceramic fiber heat shield.
-
Removable gasket for easy cleaning operations.
-
Fin & Tube Condenser improves performance in high temperature environments.
-
Automatic Defrost Cooling System provides worry-free performance.
-
Electronic Temperature Control, quick and simple to set, with control display for easy monitoring.
-
Marine edge top, for containing spills
-
Removable rubber bumper guards for airflow spacing and shock absorption
-
Drawer slides support up to 152 lbs. static capacity.
-
Side‑mounted refrigeration system improves airflow, reduces heat buildup behind the unit, and allows easy service access
-
Stainless steel interior and exterior, durable and easy to clean for daily commercial use.
-
Ceramic insulated top
-
Pre-wired heavy duty power cord.
-
Heavy duty casters.
-
Magnetic gasket removable without tools for easy cleaning.
-
Heavy duty drawer runners.
-
Front and rear ventilation panel design improves airflow for effective heat release from the refrigeration system.
Electric
- Supply voltage: 115 V/1 ph/60 Hz
- Electrical power max: 0.22 kW
- Plug type: USA NEMA 5-15P
- Current consumption: 2.1 Amps
- Compressor power: 1/5 hp
-
Power Cable Length:
2500 mm
Key Information:
- Door hinges: Slide in
- External dimensions, Width: 76 " (1930.4 mm)
- External dimensions, Depth: 31 7/8" (810 mm)
- External dimensions, height: 26 13/16" (681 mm)
- Internal Dimensions (depth): 26 3/4" (680 mm)
- Internal Dimensions (height): 14 15/16" (379 mm)
- Internal Dimensions (width): 52 1/4" (1327 mm)
- Net weight: 300 lbs (136 kg)
- Shipping width: 32 7/8" (835 mm)
- Shipping depth: 77 9/16" (1970 mm)
- Shipping height: 28 3/8" (720 mm)
- Shipping weight: 375 lbs (170 kg)
- Shipping volume: 41.82 ft³ (1.18 m³)
- Type of external material: Stainless Steel
- Type of internal material: 304 AISI
- Approvals ETL C&US;ETL SANITATION
- Number of drawers: 4
Sustainability
- Refrigerant type: R290
- GWP Index: 3
- Refrigerant weight: 80 g
Capacity:
- Gross capacity: 13.0312 cu.feet
Refrigeration Data
- Operating temperature min.: 32 °F (0 ° C)
- Operating temperature max.: 41 °F (5° C)
- Defrost type: Auto Defrost
- Evaporator type Finned
- Refrigerant unit side: Right
