Refrigeration Equipment

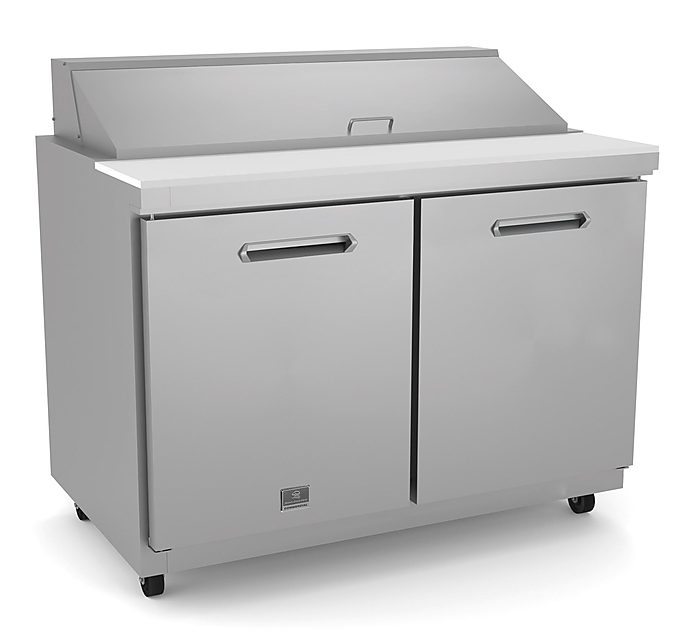

2-Door Sandwich/Salad Prep Table 48" Long 12-1/6 Pan 738256

2-Door Sandwich/Salad Prep Table 48" Long 12-1/6 Pan

  • Features
  • Specifications
  • Documents
  • External temperature display.

  • Removable gasket for easy cleaning operations.

  • Fin & Tube Condenser improves performance in high temperature environments.

  • Automatic Defrost Cooling System provides worry-free performance.

    • Electronic Temperature Control, quick and simple to set, with control display for easy monitoring.

    • Full Depth cutting board.

    • Cabinet completely insulated with high density polyurethane for low environmental impact.

    • Heavy duty Vinyl coated steel shelves.

    • Heavy duty casters.

    • Insulated lid maintains food freshness.

    • Holds 12 1/6 pans.

    • Pre-wired heavy duty power cord.

    • Heavy duty door hinges.

    • Magnetic gasket removable without tools for easy cleaning.

Electric

  • Supply voltage: 115 V/1 ph/60 Hz
  • Electrical power, max: 0.72 kW
  • Plug type: USA NEMA 5-15P

Capacity:

  • Gross capacity: 12 cu.feet
  • Number and type of grids (included): 2 - 538x425

Sustainability

  • Refrigerant type: R290
  • GWP Index: 3
  • Refrigerant weight: 90 g

Refrigeration Data

  • Current absorbed: 4.3 Amps
  • Compressor power: 1/3 hp
  • Operating temperature min.: 32 °F
  • Operating temperature max.: 41 °F
  • Condenser type: Fin & tube
  • Defrost type: Auto Defrost

Key Information:

  • Door hinges: 1 Left+1 Right
  • External dimensions, Width: 48 1/4" (1225 mm)
  • External dimensions, Depth: 29 15/16" (760 mm)
  • External dimensions, Height: 43 3/16" (1097.5 mm)
  • Number and type of doors: 2 Full
  • Internal Dimensions (depth): 23 13/16" / (605 mm)
  • Internal Dimensions (height): 23 1/2" / (597 mm)
  • Internal Dimensions (width): 42 13/16" / (1088 mm)
  • Shipping height: 47 1/4" (1200 mm)
  • Shipping weight: 333 lbs (151 kg)
  • Shipping volume: 42.88 ft³ (1.21 m³)
  • Type of grids (included): Vinyl-Coated steel
  • Type of external material: Stainless Steel
  • Type of internal material: Polystyrene
  • Warranty: 3 / 5 years
  • Approvals ETL C&US;ETL SANITATION

CAD Drawings

(279,44 KB)

Data Sheet

Spare Parts Catalogue

(232,67 KB)
(147 KB)
