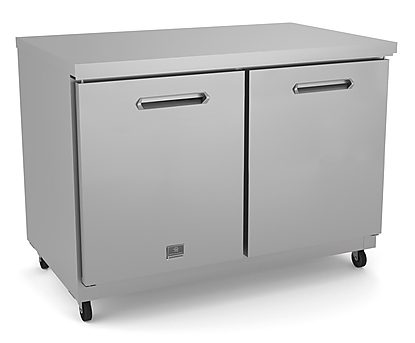

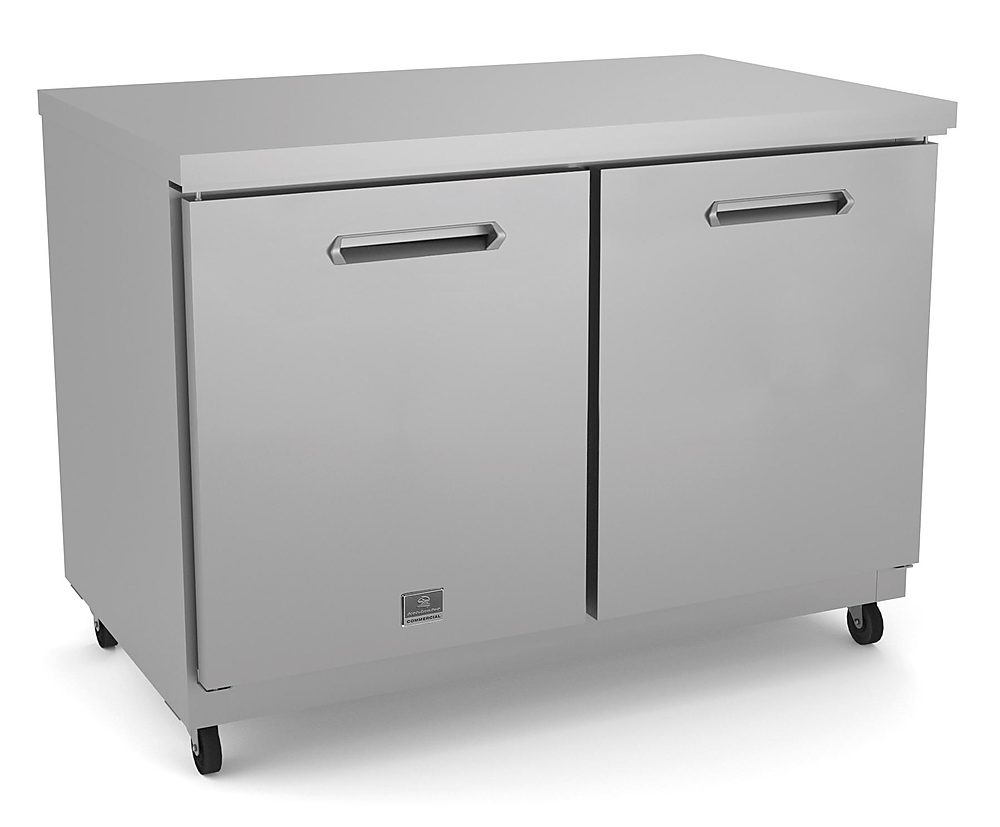

2-Door Under Counter Freezer 48" Long 738266

2-Door Under Counter Freezer 48" Long

  • Features
  • Specifications
  • Documents
  • External temperature display.

  • Removable gasket for easy cleaning operations.

  • Fin & Tube Condenser improves performance in high temperature environments.

  • Automatic Defrost Cooling System provides worry-free performance.

    • Electronic Temperature Control, quick and simple to set, with control display for easy monitoring.

    • Heavy duty Vinyl coated steel shelves.

    • Cabinet completely insulated with high density polyurethane for low environmental impact.

    • Self-closing door with 90-degree stay-open feature.

    • Heavy duty casters.

    • Pre-wired heavy duty power cord.

    • Heavy duty door hinges.

    • Magnetic gasket removable without tools for easy cleaning.

Electric

  • Supply voltage: 115 V/1 ph/60 Hz
  • Electrical power, max: 0.41 kW
  • Plug type: USA NEMA 5-15P

Capacity:

  • Gross capacity: 12 cu.feet

Sustainability

  • Refrigerant type: R290
  • GWP Index: 3
  • Refrigerant weight: 100 g

Refrigeration Data

  • Current absorbed: 4 Amps
  • Compressor power: 1/3 hp
  • Operating temperature min.: -9.4 °F
  • Operating temperature max.: 8.6 °F
  • Condenser type: Fin & tube
  • Defrost type: Auto Defrost

Key Information:

  • Door hinges: 1 Left+1 Right
  • Capacity: 12 cu.ft.
  • External dimensions, Width: 48 1/4" (1225 mm)
  • External dimensions, Depth: 29 15/16" (760 mm)
  • External dimensions, Height: 35 1/2" (902 mm)
  • Internal Dimensions (depth): 22 13/16" / (580 mm)
  • Internal Dimensions (height): 23 1/2" / (597 mm)
  • Internal Dimensions (width): 42 1/2" / (1080 mm)
  • Shipping height: 38 3/16" (970 mm)
  • Shipping weight: 273 lbs (124 kg)
  • Shipping volume: 34.66 ft³ (0.98 m³)
  • Number and type of grids (included): 2 - Vinyl-Coated Steel
  • Type of external material: Stainless Steel
  • Type of internal material: Polystyrene
  • Warranty: 3 / 5 years
  • Approvals ETL C&US;ETL SANITATION

CAD Drawings

(252,45 KB)

Data Sheet

Spare Parts Catalogue

(254,68 KB)
(144,97 KB)
